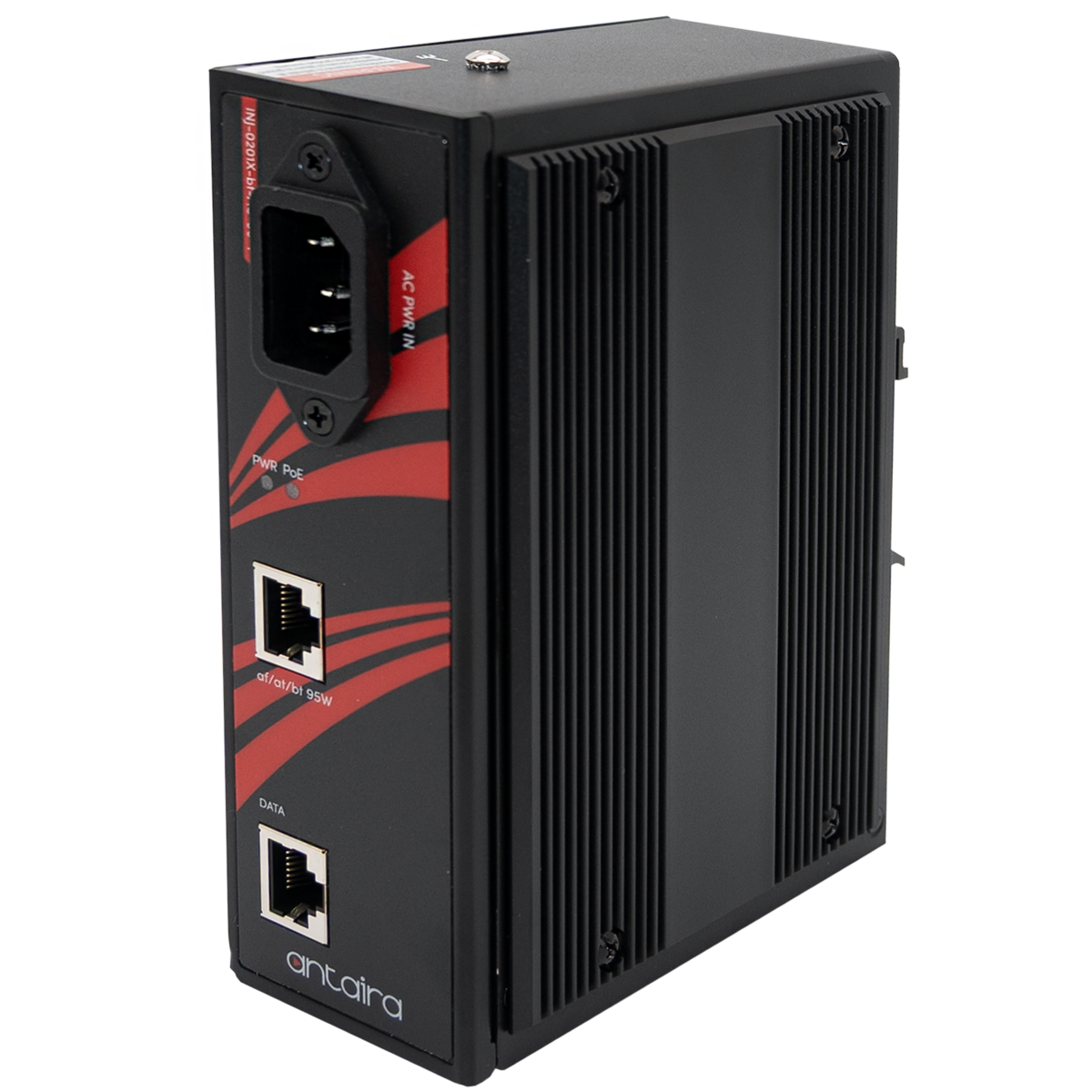

The NEW Antaira INJ-0201X-bt-AC-95-T

Antaira’s new INJ-0201X-bt-AC-95-T Industrial 10G PoE++ Injector delivers up to 95W of power with multi-gigabit Ethernet speeds, designed for high-bandwidth industrial surveillance, wireless, and edge networking applications.

Now available through WD Engineering Sales, this industrial-grade injector combines high-speed 10GBase-T data transmission with IEEE 802.3bt PoE++ power delivery in a rugged, wide-temperature design built for demanding environments.

Key Features

• Data-in: 1*10/100/1000/2.5G/5G/10G Base-Tx RJ45

• Data and PoE++ Out: 1*10/100/1000/2.5G/5G/10G Base-Tx RJ45 with PoE++

• Provides up to 95W on PoE++ Port

• 85~264VAC Power Input with IEC C14 Socket, simply plug into wall outlet

• IP40 Protection

• DIN-Rail or Wall Mountable

• Operating Temperature Range: -40°C to 75°C

• 5-Year Warranty

Functional Highlights

• High-speed data transmission with 10GBase-T support and 95W PoE++ output, simplifying deployment of edge devices.

• Direct AC input eliminates the need for external DC power supplies, streamlining installation.

• Rugged IP40 enclosure and wide temperature operation ensure reliable performance in harsh industrial environments.

• Ideal for industrial applications such as:
  • Industrial surveillance systems
  • High-powered IP cameras
  • Wireless access points
  • Industrial automation networks
  • Edge computing and remote monitoring applications

Part Number: INJ-0201X-bt-AC-95-T
