⚡️LS Electric H100+ VFD: A Smarter, Stronger Solution for Fan & Pump Control
When it comes to HVAC, water treatment, and pump‑driven systems, reliability and efficiency aren’t optional — they’re essential. LS Electric’s H100+ Fan & Pump Drive is engineered specifically for these demanding environments, delivering intelligent control, robust protection features, and modern communication options that make integration seamless.
Let’s breakdown what makes the H100+ a standout choice for OEMs, contractors, and facility engineers.
💨Purpose‑Built for Fan & Pump Applications
The H100+ isn’t a general‑purpose VFD — it’s optimized for the real‑world challenges of HVAC and pumping systems.
Key Application Features
Soft Fill Operation Prevents pump damage from sudden pressure changes during startup.
Start/End Ramp Control Smooth acceleration and deceleration to protect piping and pump components.
Deceleration Valve Ramp Reduces pressure shock when stopping or closing valves.
Multi‑Motor Control (MMC) One drive can control 1 main motor + up to 5 auxiliary motors, ideal for multi‑pump systems.
Lead‑Lag Pump Control Automatically rotates pump duty cycles to extend equipment life.
No‑Flow Detection & Over‑Cycle Protection Helps prevent dry‑run conditions and system inefficiencies.
Fire Mode Ensures continuous operation during emergency conditions.
⚙️Built‑In Convenience & Smarter Operation
The H100+ is designed to make installation, commissioning, and maintenance easier.
User‑Focused Design
HVAC‑exclusive keypad with HAND/AUTO modes
Easy‑change cooling fan without opening the drive cover
Smart Copier for fast parameter upload/download
Side‑by‑side mounting for space‑efficient panel layouts (up to certain kW ranges)
🔗Modern Communication & Integration
The H100+ supports the protocols used across building automation and industrial control systems.
Standard Built‑In Protocols
Modbus‑RTU
Metasys N2
BACnet MS/TP
Optional Communication Cards
BACnet/IP
EtherNet/IP
Modbus TCP
LonWorks
This makes the H100+ easy to drop into existing BAS networks or new installations.
H100 Plus
Fan and Pump Drive
Click here to learn more.
🔒Reliability, Safety & Compliance
The H100+ is engineered for long‑term durability and global compliance.
Protection & Safety
SCCR 100kA rating
Built‑in DC reactor (improves power factor & reduces THD)
Built‑in EMC filter for noise reduction (varies by kW range)
UL Plenum Rated — suitable for air‑handling compartments
Seismic‑rated design (OSHPD)
Environmental Ratings
-10°C to 50°C operating range (HD)
Up to 4,000m altitude with derating
95% RH non‑condensing humidity tolerance

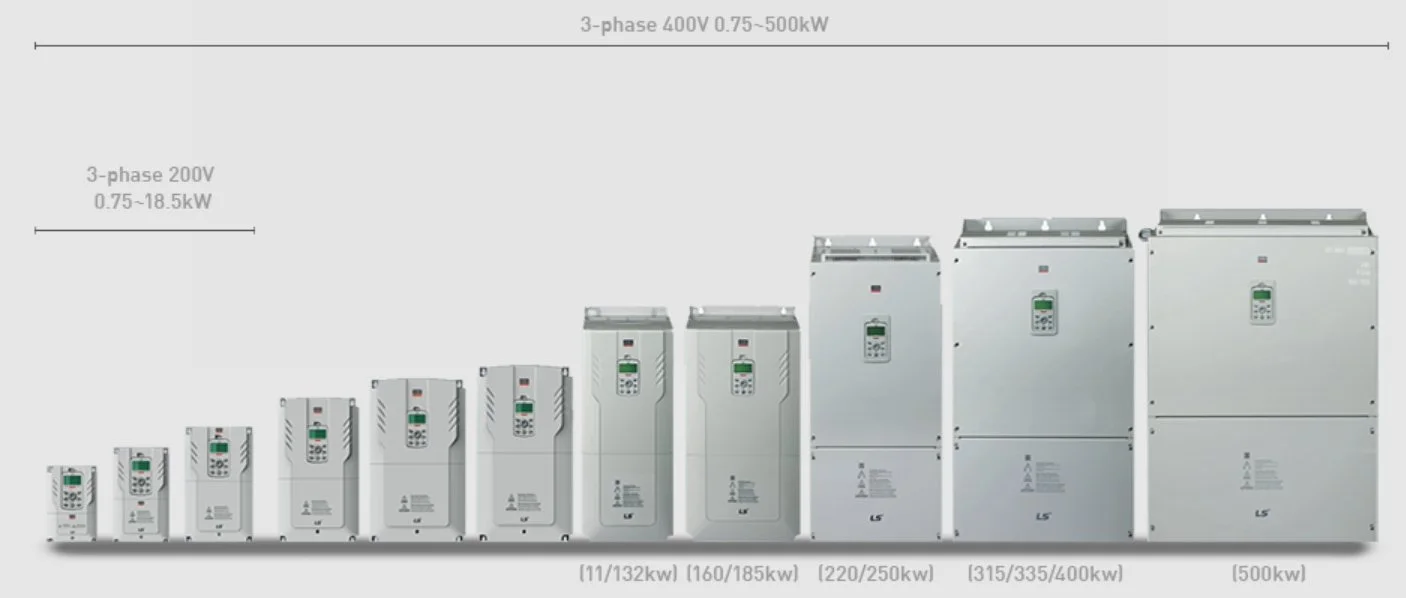

🔌Power Range & Availability
The H100+ covers a wide range of horsepower classes across multiple voltages:
200–240V: 1–125 HP
380–480V: 1–800 HP
525–600V: 7.5–125 HP
This makes it suitable for everything from small booster pumps to large industrial fan systems.
🌱Energy Efficiency Built In
LS Electric positions the H100+ as an energy‑saving drive, especially for water treatment and HVAC applications. Features like optimized motor control, ramping, and multi‑motor sequencing help reduce energy waste and extend equipment life.
⭐Final Takeaway
The LS Electric H100+ VFD delivers reliable, application‑focused performance for HVAC and pump systems, with smart control features, modern BAS communication options, and built‑in protection designed for long‑term durability. If you’re looking for a drive that’s easy to integrate, easy to operate, and engineered specifically for fan and pump applications, the H100+ is a strong fit for both new installations and retrofit projects.
WD Engineering Sales is your local LS Electric representative, ready to support product selection, technical guidance, and project needs across the region.
