Antaira Expands Its Industrial Networking Portfolio with New High‑Performance Solutions
Antaira has introduced a new lineup of industrial networking products designed to support modern automation, outdoor infrastructure, security networks, and high‑power edge devices. This release includes updates across Layer 3 switching, rugged NEMA enclosure kits, PoE++ power solutions, wireless connectivity, and general‑purpose switching — giving engineers more options for building reliable networks from edge‑to‑core.
Below is a breakdown of what’s new.

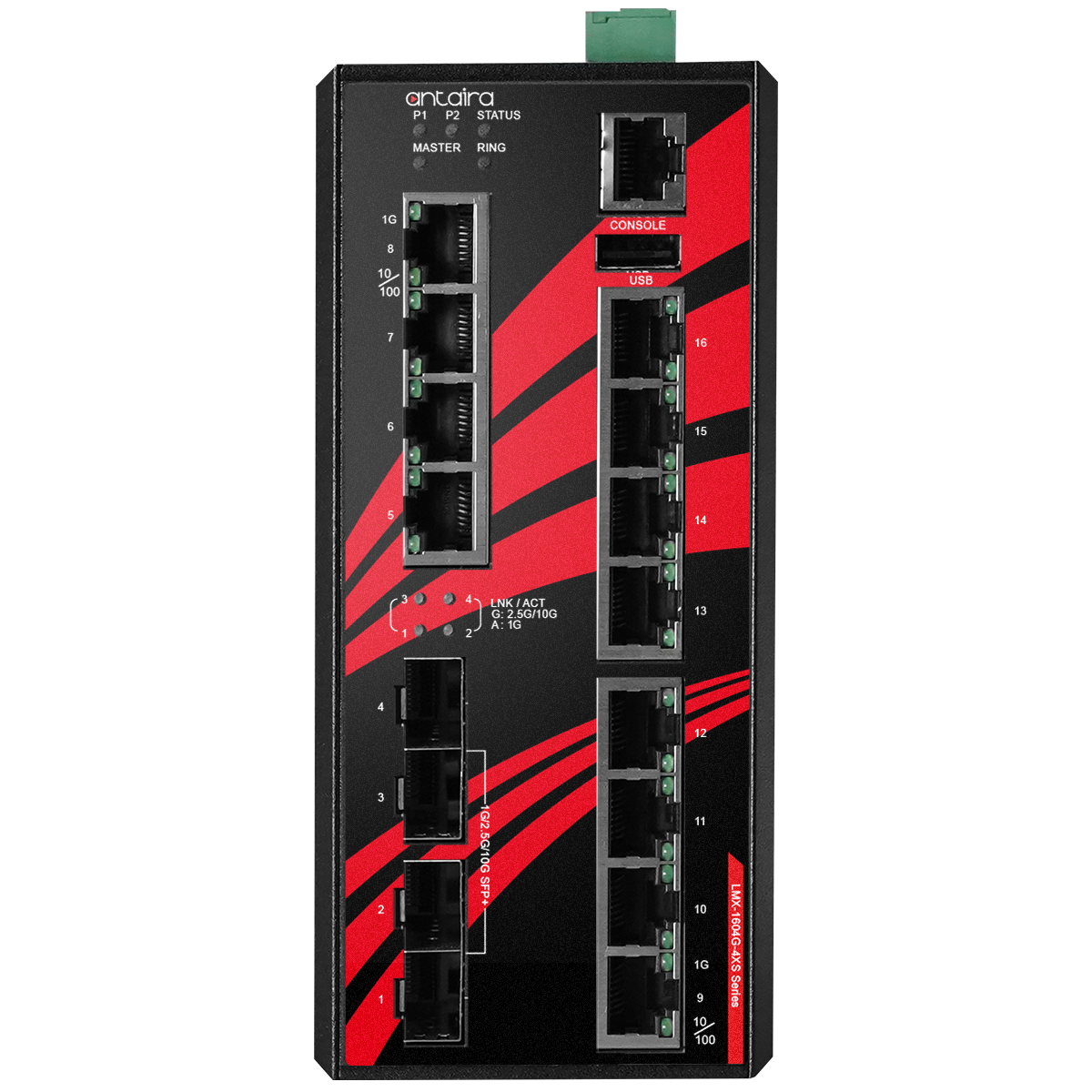

Layer 3 Managed Switches with 10G SFP+ Uplinks
Antaira’s newest Layer 3 switches — LMP‑1604G‑4XS‑bt‑T and LMX‑1604G‑4XS‑T — deliver high‑density connectivity and advanced routing capabilities for industrial networks that require both performance and redundancy.
Key Features:
12 Gigabit Ethernet ports
Four 10GbE SFP+ uplinks
Layer 3 routing: OSPFv2/v3, RIPv2/RIPng, VRRPv2/v3, static routes
‑40°C to 75°C operating temperature
PoE++ model provides up to 100W per port with a 360W total budget
These switches are ideal for high‑bandwidth applications, fiber‑backbone networks, and deployments requiring advanced routing at the edge.

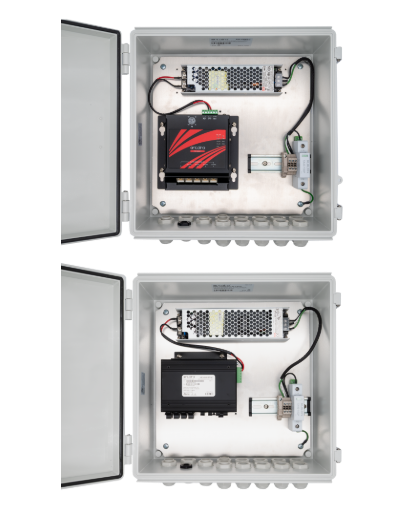

IP68 Deployment‑Ready NEMA Enclosure Kits
The LANOBOX Series provides rugged outdoor networking solutions with integrated surge protection and power. Each kit includes an industrial switch pre‑installed inside a fully sealed IP68 enclosure.
LANOBOX‑105‑T
Includes FNP‑0500G‑T unmanaged switch
Four PoE+ ports delivering up to 30W/port
Designed for standard outdoor PoE applications
LANOBOX‑212‑T
Includes LMP‑1204G‑SFP‑bt‑T managed switch
Four PoE++ ports delivering up to 100W/port
Four SFP fiber slots
Built‑in redundancy features for critical networks
Both kits offer 20kA surge protection and operate from ‑30°C to 75°C, making them suitable for outdoor security, utilities, transportation, and remote infrastructure.

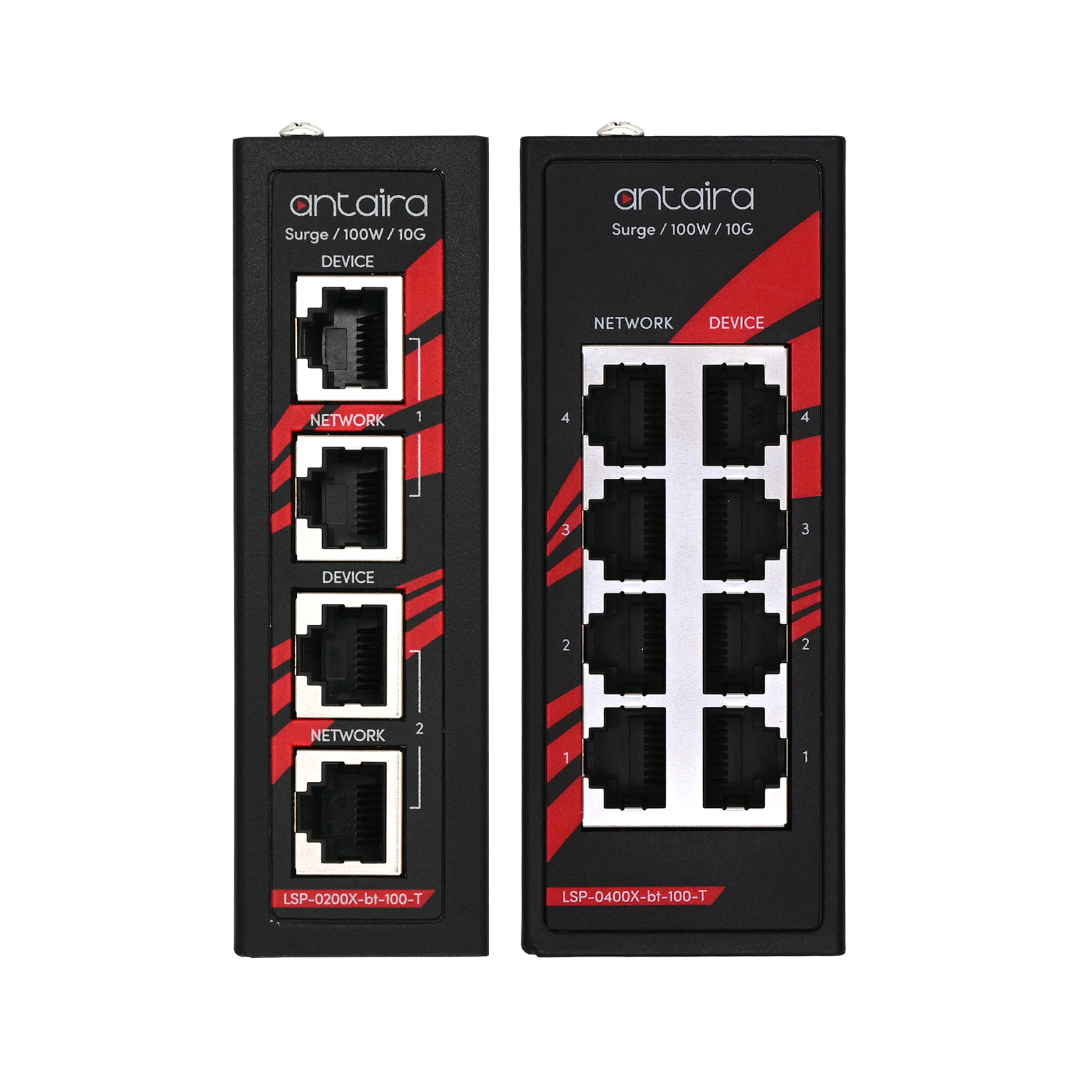

Industrial PoE++ Surge Protectors
Antaira’s new PoE++ surge protectors help safeguard high‑power devices from electrical surges, lightning strikes, and transient voltage spikes.
Models:
LSP‑0200X‑bt‑100‑T (dual‑port)
LSP‑0400X‑bt‑100‑T (four‑port)
Key Features:
Supports 10/100/1G/2.5G/5G/10G speeds
10GbE throughput
IEEE 802.3bt PoE++ up to 100W
Compact IP30 housing
DIN‑rail or wall‑mountable
‑40°C to 75°C operating range
These protectors are ideal for outdoor cameras, sensors, wireless radios, and other PoE‑powered devices.
Industrial AC‑Powered PoE++ Injectors
Antaira has added two new AC‑powered PoE++ injectors that simplify high‑power deployments by eliminating the need for external DC power supplies.

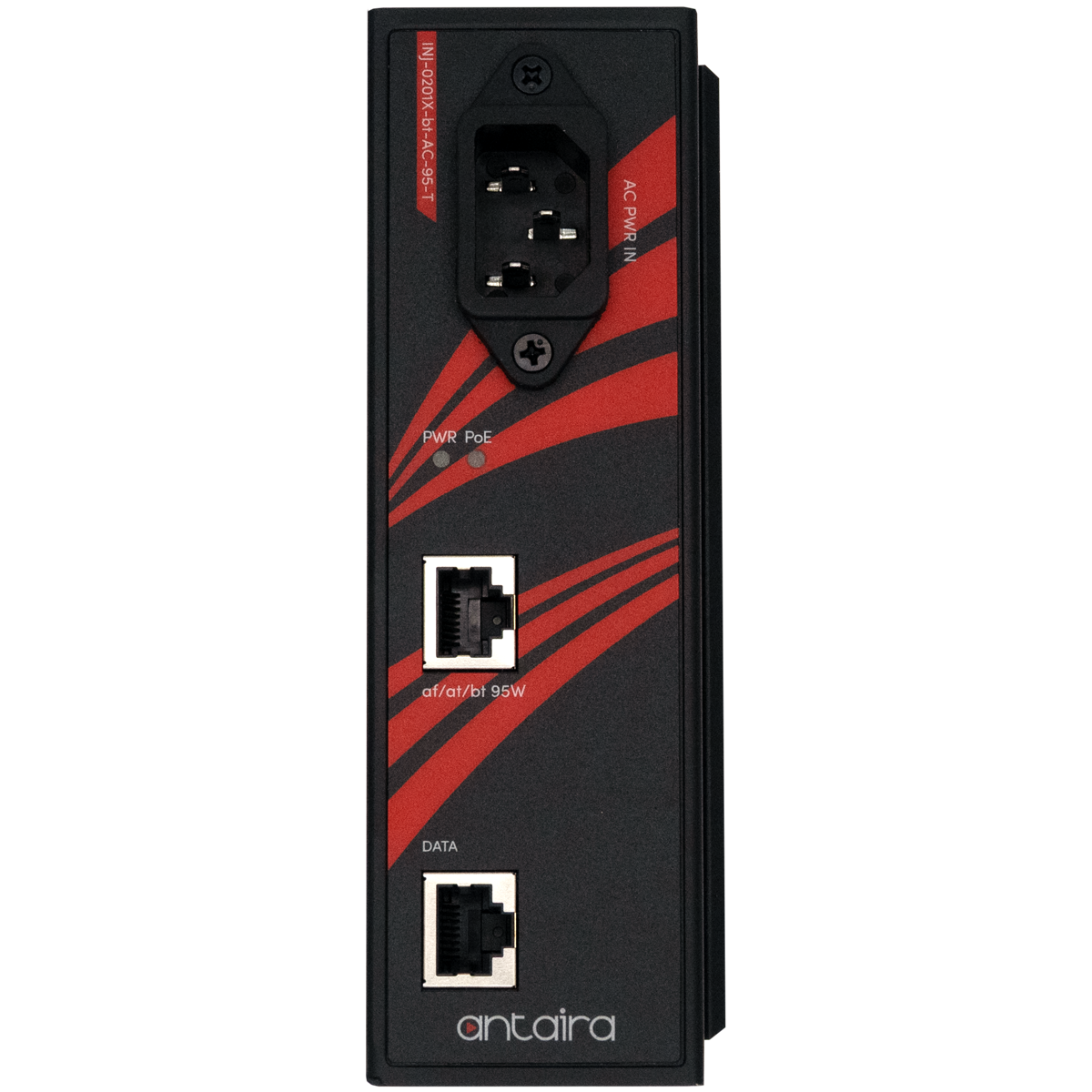

INJ‑0201X‑bt‑AC‑95‑T
10G PoE++
Up to 95W
85–264VAC input with IEC C14 socket
‑40°C to 75°C

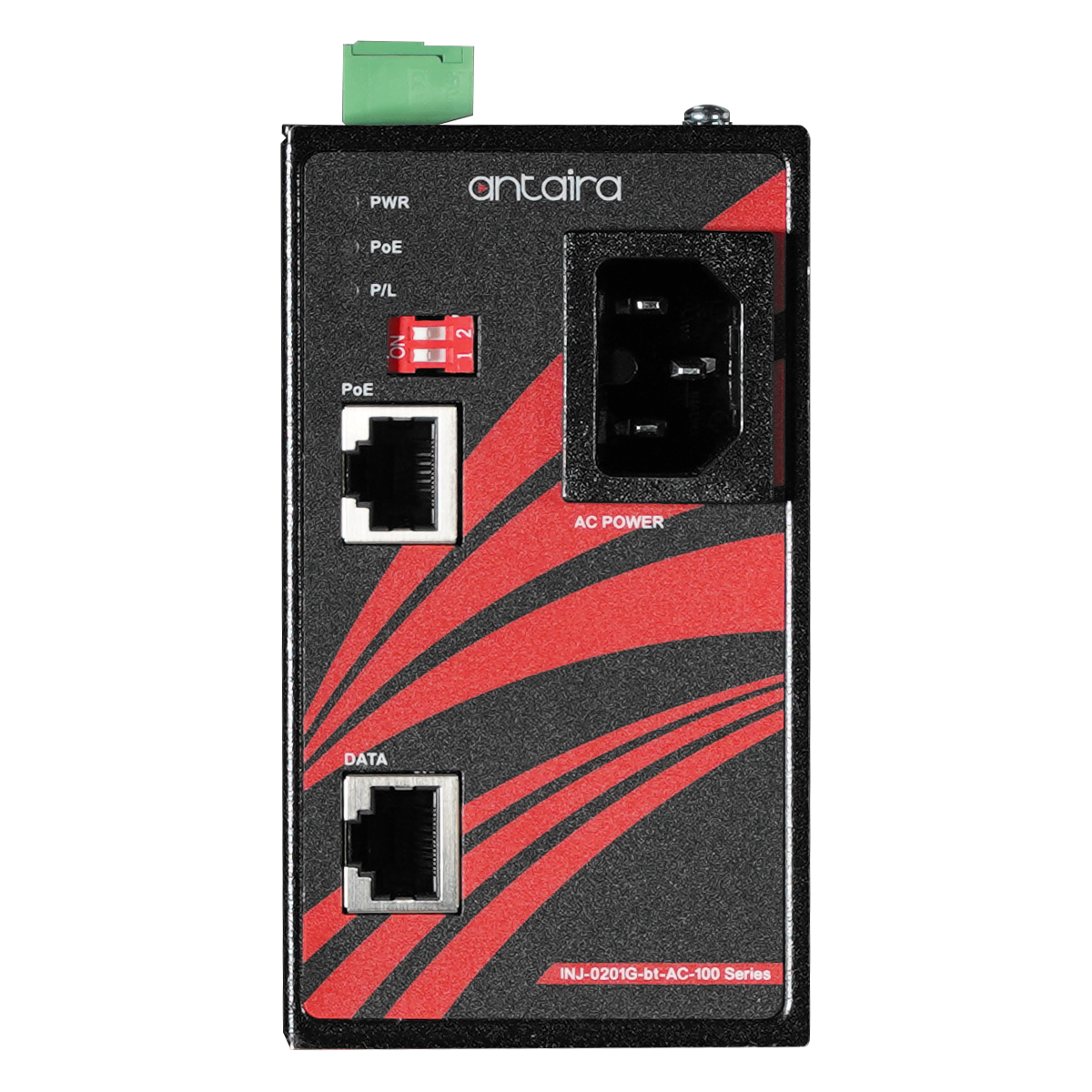

INJ‑0201G‑bt‑AC‑100‑T
Gigabit PoE++
Up to 100W (High PoE, PoH, 4PPoE)
100–240VAC input
‑40°C to 75°C
These injectors are well‑suited for powering high‑wattage devices such as PTZ cameras, industrial wireless radios, and edge AI systems.

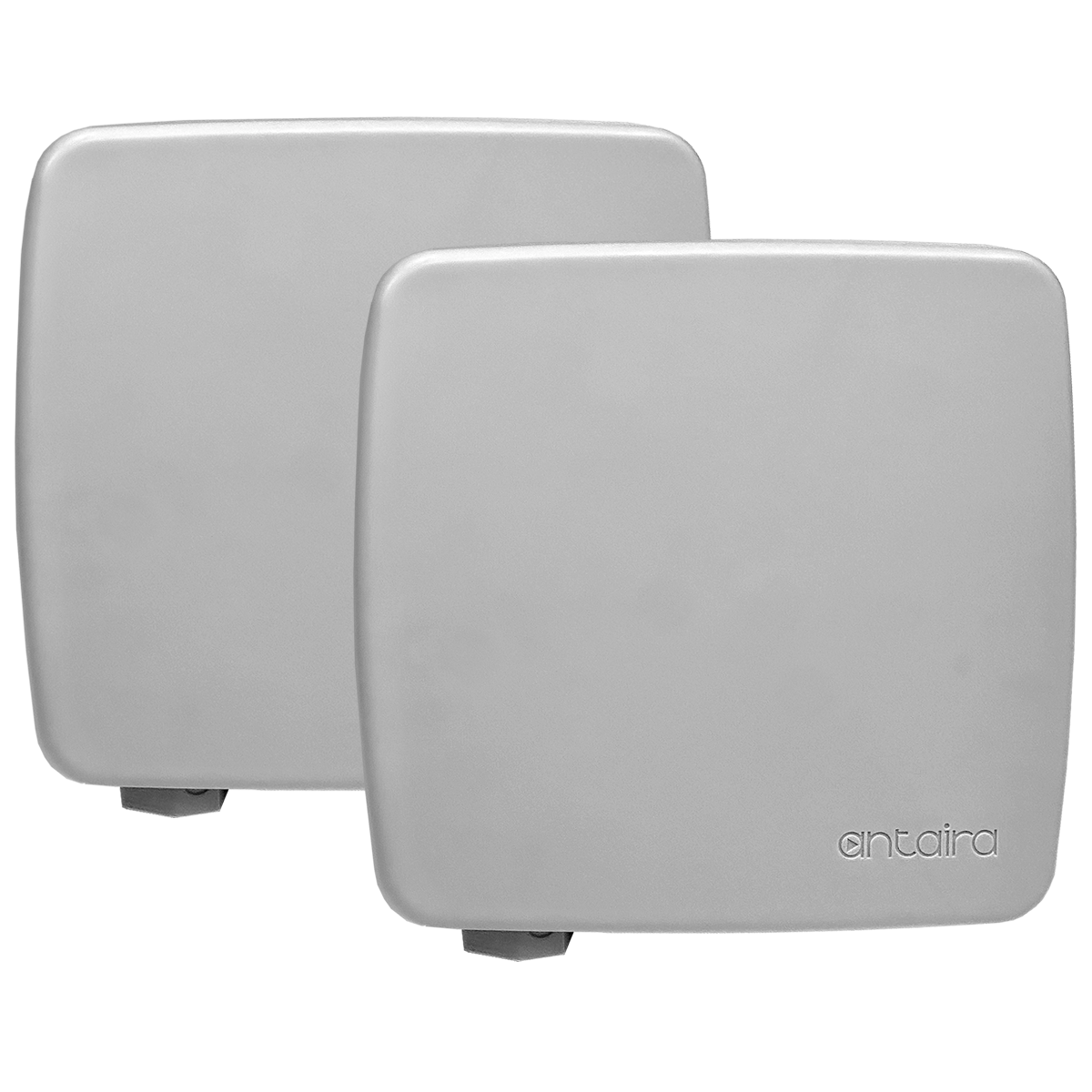

Outdoor IP67 Wi‑Fi 6 Bridge Kits
The AIROLINX‑GOMAX‑KIT‑IP67‑T and AIROLINX‑GO‑KIT‑IP67‑T provide ready‑to‑deploy outdoor point‑to‑point wireless connectivity.
Highlights:
Preconfigured matched‑pair kits
Quick installation: mount → power → align → deploy
IP67‑rated for harsh environments
‑40°C to 75°C operating range
These kits are ideal for long‑distance wireless links across industrial yards, campuses, parking lots, and remote sites.

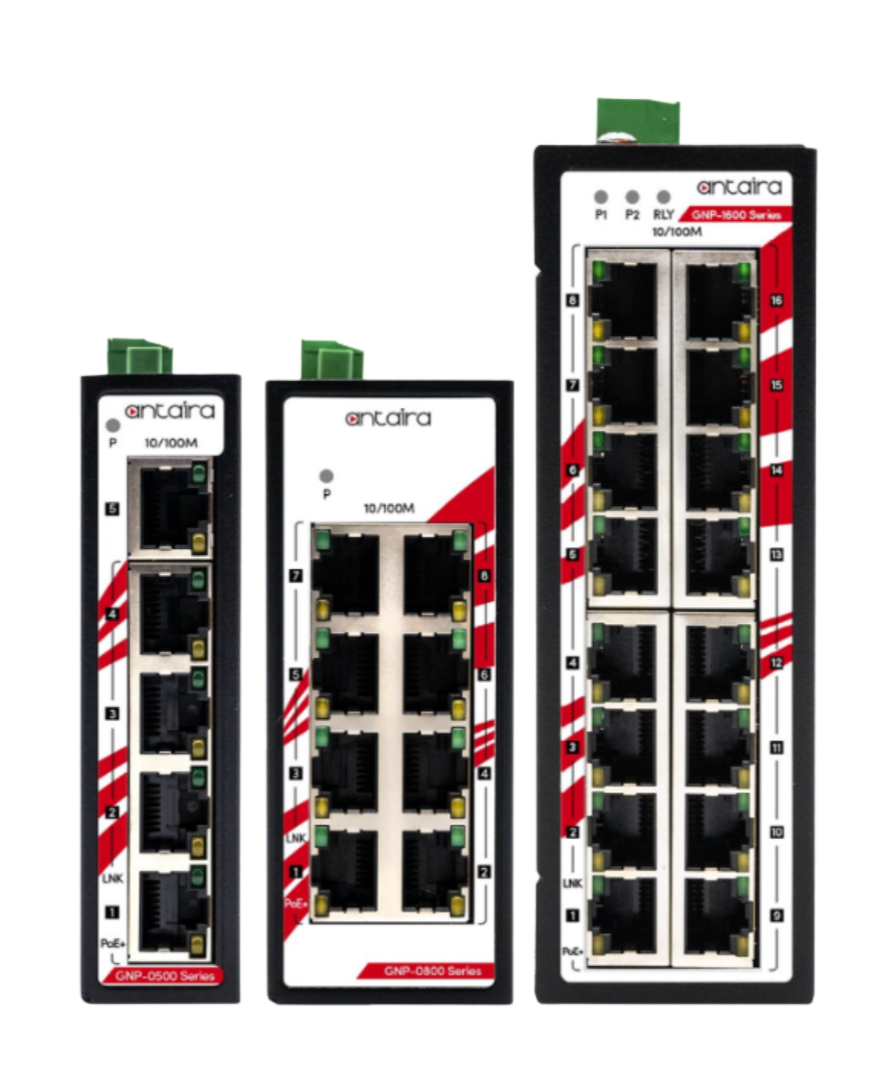

General Purpose Industrial Switches
Antaira’s G‑Series Unmanaged Switches offer cost‑optimized connectivity for standard industrial deployments.
Options include:
5‑, 8‑, and 16‑port models
10/100 or Gigabit versions
PoE+ up to 30W/port
‑40°C to 75°C operating range
These switches provide reliable, no‑frills connectivity for basic automation and networking needs.

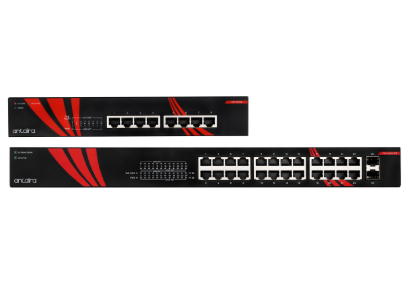

SMB Enterprise Rackmount PoE+ Switches
For enterprise environments, Antaira offers two new unmanaged rackmount PoE+ switches:
CNP‑0800G
Eight Gigabit PoE+ ports
Up to 30W/port
130W total PoE budget
CNP‑2602G‑SFP
24 Gigabit PoE+ ports
Two 100/1000 SFP slots
380W total PoE budget
Both models support 100–240VAC input and operate from 0°C to 40°C, making them suitable for indoor enterprise and SMB networks.
Antaira’s newest product lineup strengthens their position as a leading provider of rugged, high‑performance industrial networking solutions. Whether you’re powering high‑wattage edge devices, deploying outdoor wireless, or building redundant fiber‑backbone networks, these new offerings provide reliable, field‑ready options for a wide range of applications.
WD Engineering Sales is the local representative for Antaira, supporting customers with product guidance, technical assistance, and application support. If you’d like spec sheets, pricing, or help selecting the right solution, our team is here to help.
